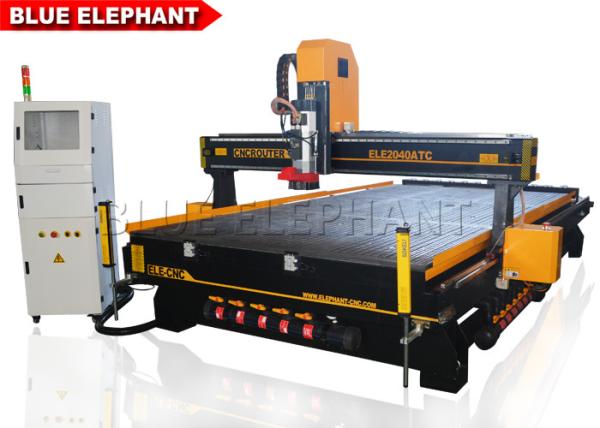

ELE 2040 good price wood cnc machine , best 3d cnc wood carving machine for furniture , KFC door
Features:
1. Effectiveworkingarea 2000*4000mm
2. 9kw Italy HSD ATC air cooling spindle,24000 rpm
3. 11kw Taiwan Delta inverter
4. Japan 850W YASKAWA servo motors and 1kw drivers
5. HIWIN#25 linear square guide way forX,Y,Z axis , TaiwanTBI ball screw for Z axis
6. 12 liner tool storage
7. Stronger support for the bridge
8. Automatic Oil Lubrication System
9. Japan Shimpo reducer
10. 2 sets 7.5Kw water circulation vacuum pump
11. Voltage:400V,3phase,50HZ(Optional)
Advantage:
1. 2000*4000*300mm working area,High Z axis travel,easy to process material.
2. 9kw Italy HSD air cooling spindle,top brand in the world,strong power,high working speed.
3. Vacuum working table,9 zones,help to fix the material, increase the utilization rate
4. New type big welded steel tube machine body
5. Positioning cylinder 6 pcs to fix the material
6. Computer control cabinet with traffic light
7. Double homing sensor on the Bridge for Eding CNC
Technical Parameters:
| Model | ELE 2040ATC |
| X,Y,Z Working Area | 2000*4000*300mm effective working area |
| Table Surface | Vacuum working table,9 zones |
| Frame | Thicken steel Square Tube Heavy structure |
| X, Y Structure | Gear and rack transmission, Taiwan HIWIN Linear Rail |
| Z Structure | Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail |
| Spindle Power | 9kw Italy HSD ATC air cooling spindle |
| Spindle Speed | 0-24000RPM |
| Drive Motors | 850w Japan YASKAWA servo motor and driver |
| Inverter | 11kw Taiwan DELTA |
| Command Language | G Code |
| Computer Interface | USB interface |
| Collet | ISO30 |
| Working Voltage | AC400V/50/60Hz,3PH (Option: 220V) |
| Software Compatibility | Type 3 /Artcam /Ucancam |
| Spare part | 1 piece Power supply 3pcs Tool holder |
| Accessories | Japan Shimpo reducer Mach3 wireless handwheels Dusthood for spindle Double homing sensor on the Bridge for Eding CNC 2 sets 7.5Kw water circulation vacuum pump |
PS:All the working area and specifications can be customized according to your requests.
Applications:
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,
craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,
crystal word making, blaster molding, and other advertising materials derivatives making.
3. die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as
artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4. relief sculpture and 3D engraving
Main parts:
