1300 X 2500mm Automated Cnc Router Machine For Woodworking Leadshine 860H Driver

Name: 1300 X 2500mm Automated Cnc Router Machine For Woodworking Leadshine 860H Driver
Brand: BLUE ELEPHANT
Price: 1 USD

1300 X 2500mm Automated Cnc Router Machine For Woodworking Leadshine 860H Driver Manufactures

Brand Name : BLUE ELEPHANT

Model Number : ELE1325

Certification : CE, ISO9001, SGS, CIQ

Place of Origin : Jinan City, Shandong Province, China

MOQ : 1 set

Price : US $3,599 - 9,999 / Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 Set/Sets per Month

Delivery Time : 10-15 working days

Packaging Details : Standard marine export plywood case

Voltage : 380V/220V,3phase,50/60HZ

Dimension(L*W*H) : 3200*2140*1850mm

After-sales Service Provided : Engineers available to service machinery overseas

spindle : Italy 4.5KW air cooling spindle

Inverter : 5.5kw Taiwan DELTA inverter

driver : Leadshine 860H

motor : FL118 stepper motor

controll system : off-line DSP controll with USP port

thansmission : helical rack and gear and Taiwan HIWIN linear guide

table : vacuum adsorption table

structure : Welded structure

Contact Now

1300x2500mm cnc router , 1325 cnc machine for wood with roller in front

Product Description

Advantages:

--- The roller in front, for easy uploading.

--- Taiwan #20 HIWIN linear guide, import from Taiwan, top brand in the world, with long life.

--- Adopt Italy HSD air cooling spindle, top brand in the world.

Features:

1300x2500x200 working area
4.5 kw Italy HSD air cooling spindle,18000rpm
5.5 kw Taiwan Delta inverter
DSP A11 control system
FL118 stepper motor and YAKO 2811 big driver
Imported Taiwan HIWIN 20# Square Linear Guide
Z axis Original Taiwan TBI ball screw Transmission
T-slot and vacuum working table
Japan Ormon Limit Switch
France Schneider safety switch
Seperated control box
Voltage 380V 3phase 50HZ (option:220v)
Plywood case Package
Type3/Artcam software

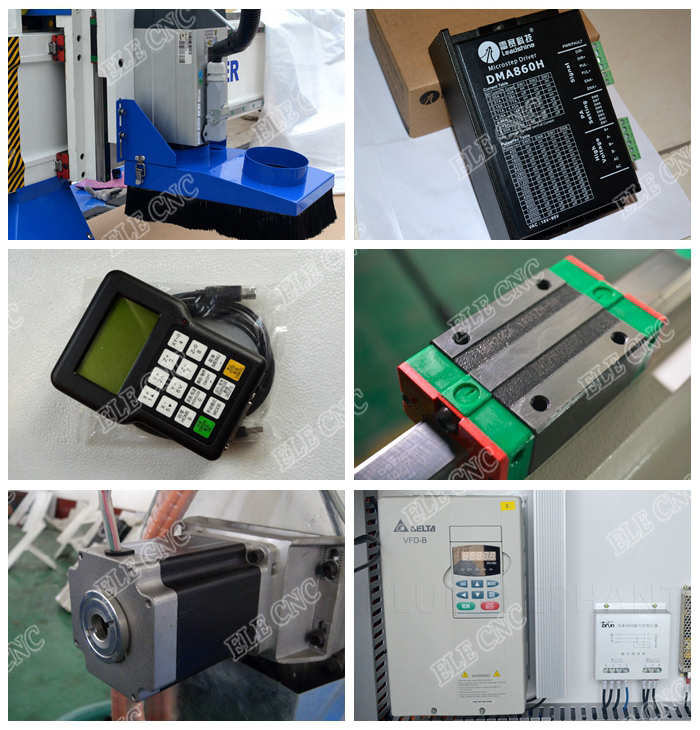

Main parts:

Technical Parameters:

Number	Description	Parameter
1	X,Y,Z Working Area	2000x3000x200mm
3	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
4	X,Y,Z Repositioning Accuracy	±0.03mm
5	Table Surface	T-slot Table
6	Spindle	4.5kw HSD air cooling spindle
7	X, Y Structure	20#Taiwan HIWIN Linear guide and helical rack
8	Z Structure	Ball screw and#20 Taiwan HIWIN Linear guide
9	Stepper Motor	FL118
10	Max. Rapid Travel Rate	45000mm/min
11	Max. Working Speed	30000mm/min
12	Stepper driver	YAKO 2811 Driver
13	Spindle Speed	0-18000RPM
14	Lubrication system	Manual or auto
15	Inverter	5.5kw Taiwan Delta Inverter
16	Command Language	G Code
17	Control System	DSP A11
18	Computer Interface	USB
19	Flash Memory	512M(U Disk)
20	Collet	ER25
21	X,Y Resolution	<0.01mm
22	Software Compatibility	Type3 Software, (Option: Artcam Software)
23	Running Environment Temperature	0 - 45 Centigrade
24	Relative Humidity	30% - 75%

Packaging and shipping:

1. Outside Package:Standard export wooden case .

2. Inner package:strech film .

For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.

For terms of payment,you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.
